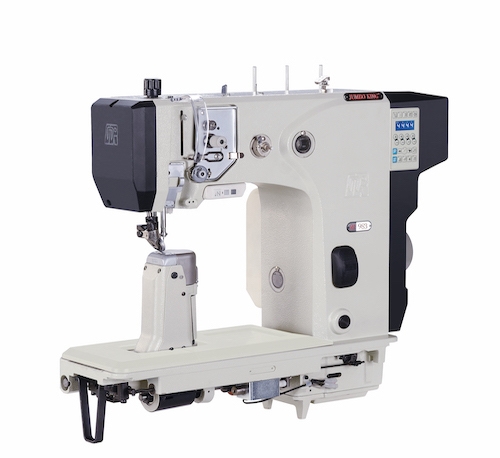

WR-983MSingle Needle Roller Feed Postbed Sewing Machine WITH WHEEL FEED, NEEDLE FEED & DRIVEN

WR-983M Single Needle Roller Feed Postbed Sewing Machine
Product Name : WR-983MSingle Needle Roller Feed Postbed Sewing Machine WITH WHEEL FEED, NEEDLE FEED & DRIVEN
Product Description
  • The heavy duty, single cast machine head has a computer processing core, equipped with a durable belt, which enables a solid, stable, high use operation.
  • The position of the control box can be changed by the operator.
  • The motor controller is installed on the back side of the machine and it is easy to install and operate.
  • The backtracking function is changed to button type, it can be easily stitched for use by the operator.
  • Increase the take-up lever, rotary hook lubricating device (transparent window design), to smooth the core components, extend the life of the machine.
  • Increase the cover to protect the base of machine, the needle, thread and other debris can put in the groove of cover.
  • With ISM motor can be linked through the WiFi equipment, it can upload the needle numbers, cutting times, operations period, so users have big data, can understand the machine usage profile, and calculate the quantities to increase production efficiency. When the control box appears abnormal message, it can send back to the management page to protect the user security in time.
Inquiry
To leave the specifications below, please cancel the selection.
WR-983M
WR-983MTS
WR-983-MBTSE
WR-983-MBTSEF
WR-983-MX2
WR-983-MX2TS
WR-983-MX2BTSE
WR-983-MX2BTSEF
Model
 WR-983M WR-983MTS WR-983-MBTSE WR-983-MBTSEF WR-983-MX2 WR-983-MX2TS WR-983-MX2BTSE WR-983-MX2BTSEF
Max.sewing speed
 2500 2500 2500 2500 2500 2500 2500 2500
Needle
 DP*5 DP*5 DP*5 DP*5 DP*5 DP*5 DP*5 DP*5
Max. Stitch Length
 7.0mm 7.0mm 7.0mm 7.0mm 7.0mm 7.0mm 7.0mm 7.0mm
Large hook
         ● ● ● ●
Needle feed
 ● ● ● ● ● ● ● ●
Lifiting of Presser Roller

Automatic Backtracking
     ● ●     ● ●
Automatic trimming
   ● ● ●   ● ● ●
Automatic Up Foot Lifer
       ●       ●
Postbed

Diameter of Postbed

Height of Posted

A.C Servo Motor


  • Ideal for boots sports shoes, work shoes, leisure shoes. foam rubber sole pads. babies shoes and high quality leather shoes.

  • Max Sewing Speed: 2,500 S.P.M.

  • Max Stitch Length: 7.0mm
  • Needle System: DPX5
